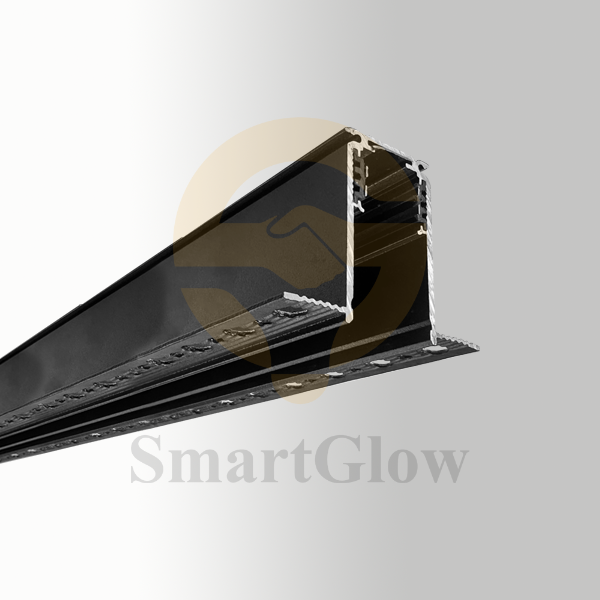

【SG20-RME1M】Recessed Magnetic Track Lighting Aluminum Rails

Name: 【SG20-RME1M】Recessed Magnetic Track Lighting Aluminum Rails
Brand: SmartGlow Magnetic Track Light
SKU: SG20-RME1M
Rating: 5 (1 reviews)

No.SG20-RME1M

This magnetci track rail is an ideal solution for building lighting. The lamp trough has a slim and beautiful appearance, which can easily integrate into any indoor space and achieve linear indoor lighting. It has an inner width of 23.5mm and can accommodate LED lights with a maximum width of 23mm. Aluminum lamp slots can be used as heat sinks, effectively improving heat dissipation performance and extending the service life of LED lights. The standard length is 1 meter and 2 meters, and the length can be customized and cut. And black and white colors are available for selection.

This embedded magnetic track light slot adopts a strong magnetic suction design, and various LED magnetic lights can be perfectly matched with this magnetic track light slot, including floodlights, folding lights, grille lights, etc. Installation or disassembly is very convenient, just insert or pull out the track.

GET A QUOTE

Description
Feature
Configuration
Specifications

Aluminum magnetic track: the perfect solution for intelligent track lighting system.

Universal:

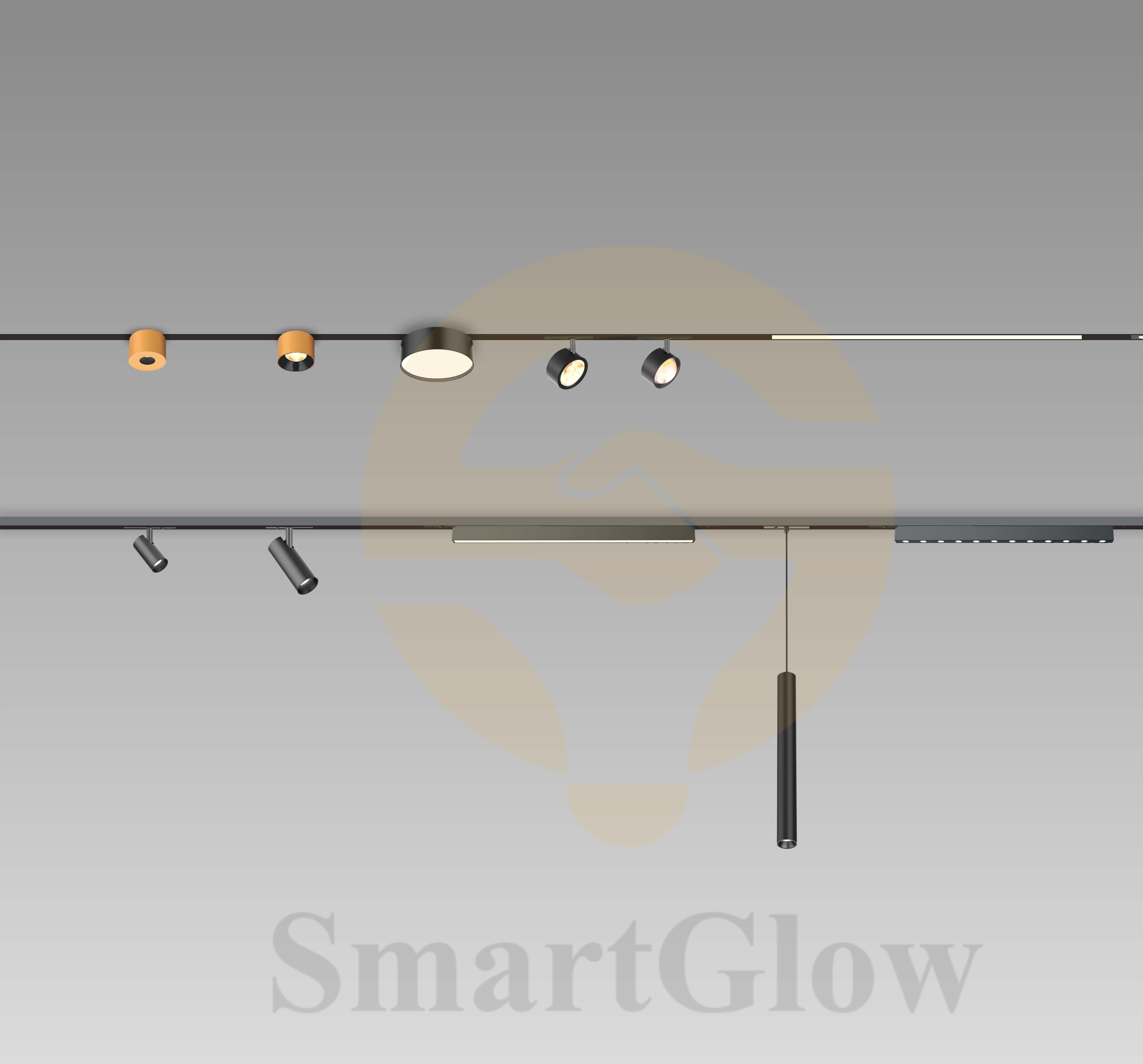

The width of the SG20 magnetic lighting track guide profile series is 23-24 millimeters (with multiple models to choose from), compatible with various track lights, including floodlights, zoom lights, grille lights, etc.

The SG20 magnetic lighting track rail profile is usually made of aluminum or plastic, with conductive conductors and wires in the grooves, used to power the lamps. Its appearance is suitable for minimalist style, so it will appear harmonious in any interior decoration. The extended lighting equipment is installed at the top - this is the conduit.

There are two colors: white and black.

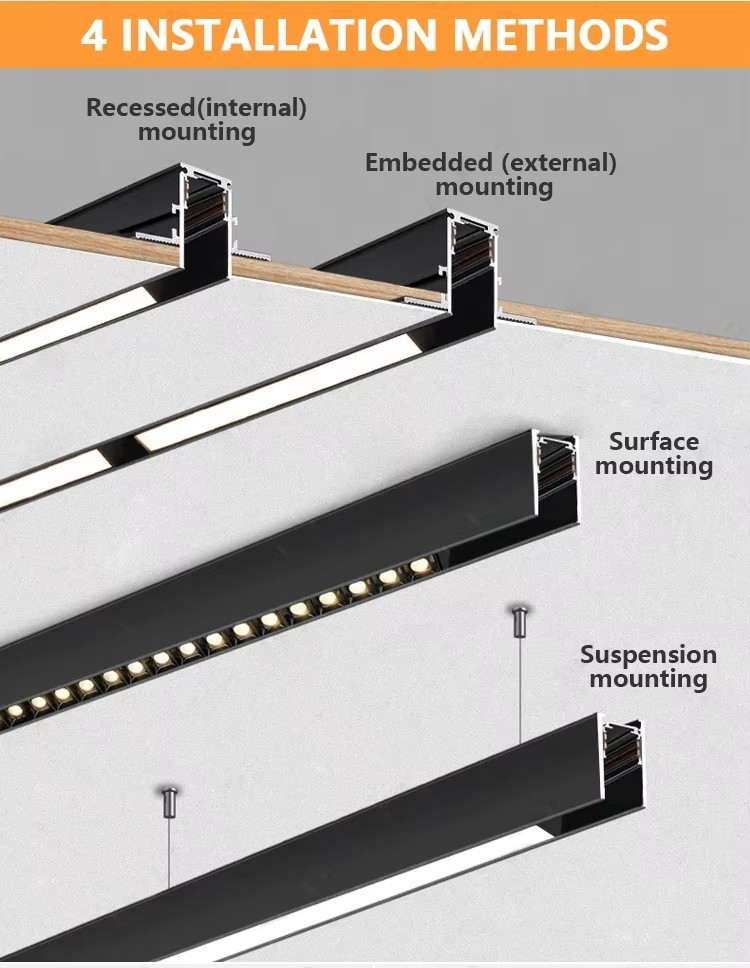

Magnetic track type:

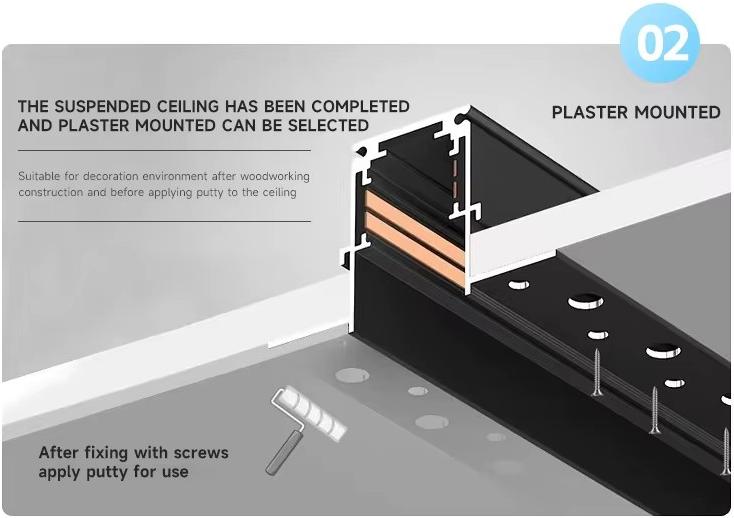

Embedded installation: Aluminum tracks can be embedded into gypsum boards for embedded installation, which can perfectly integrate with indoor decoration.

Embedded gypsum board: These magnetic light rails can be embedded into the ceiling.

Suspended: You can hang these magnetic tracks from the ceiling.

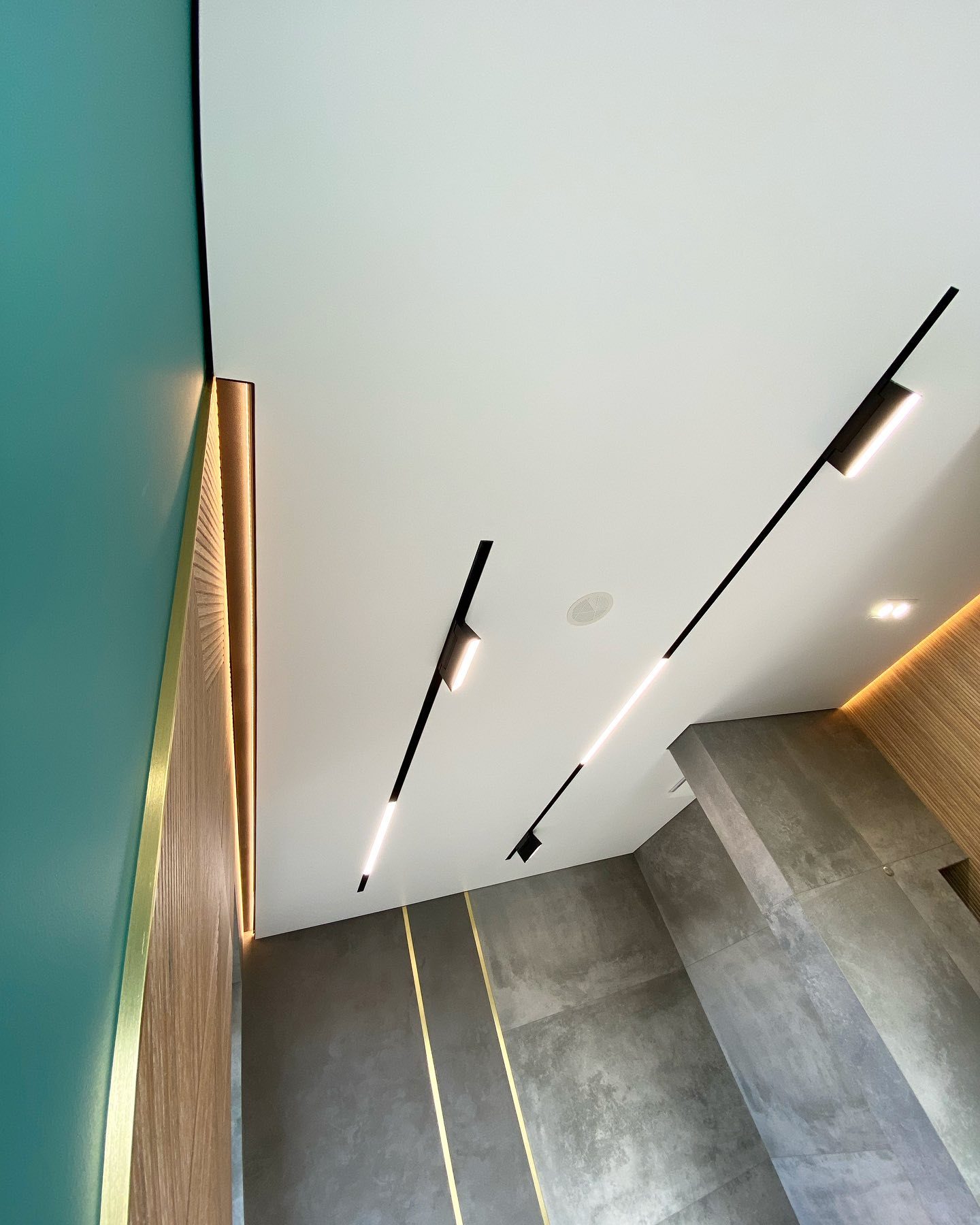

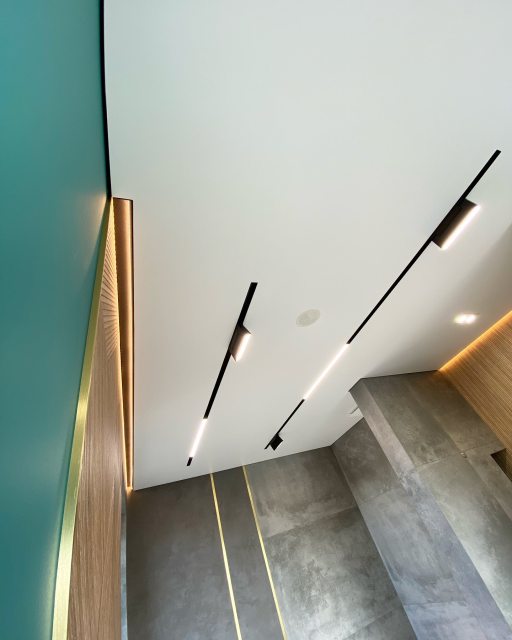

Magnetic lighting tracks are suitable for residential, workplace, office, and public spaces. They are installed in hospitals and kindergartens, shops and clubs, cafes and restaurants. There are no usage restrictions.

In our products, you will find various accessories for magnetic lighting tracks, including special LED lighting profiles and innovative double-layer profiles. In addition, we also provide necessary stretching ceiling accessories such as clips, adhesives, covers, and seals. To achieve a complete lighting effect, we also recommend using power supplies, remote controls, and LED controllers.

If you have higher requirements for track lighting, there is a separate variant, stretch tension ceiling profiles - embedded gypsum board, ceiling, fabric ceiling. Stretching tension ceiling profiles combined with LED light strips can create more diverse rail lighting solutions.

Please click on: Provide connectors, corner connectors, and transformer light accessories

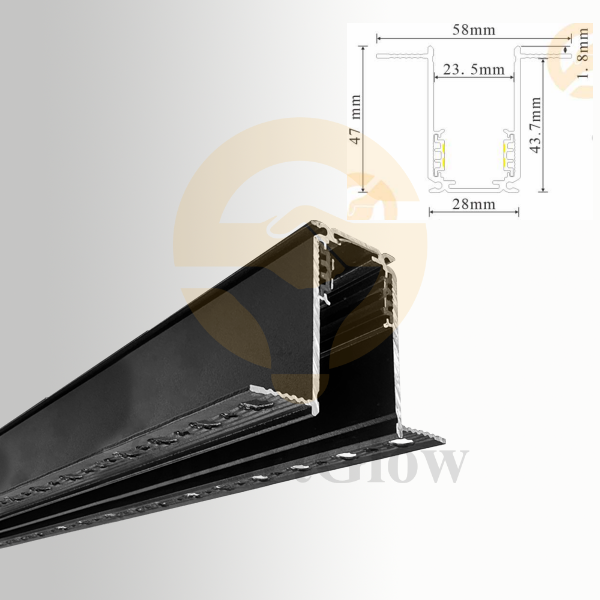

Model	SG20-RME1M
Size	47 * 58 millimeters (height * width)
Slot width	28mm
Surface treatment	Anodizing
Body Material	Aluminum
Standard length	1 meter(customizable)
Inner width	23.5 millimeters
Input Voltage(V)	48v
Optional track lights	Floodlights, pendant lights, grille lights, folding lights, spotlights, etc
Color	black/ white/silvery
IP protection level	IP20 non waterproof
Installation method	Embedded gypsum board
Connection Method	90 °, 90 ° vertical, and 180 ° connectors need to be purchased separately
Warranty	5 Years
Installation	Embedded, Surface Mounted, or Suspended
ODM/OEM service	Yes
Attraction	Using magnetic suction and buckle type module, much safer
