【SGT01】PVC Film Curtain Track Stretch Tension Fabric Ceiling Profile Manufacturer
No.SGT01
The standard distribution length for profiles is 2 meters and 3 meters. The shell can be painted in RAL color according to the decoration design of the room. The magnetic track is made of aluminum alloy material and has undergone anodizing treatment on the surface, which enhances its oxidation resistance and extends its service life. The standard length is 1 meter, the maximum length is can be customized , and black and white colors are available for selection. Can be embedded in ceilings or walls for embedded installation. There are also various corner connectors sold separately, which can achieve straight or angled connections.

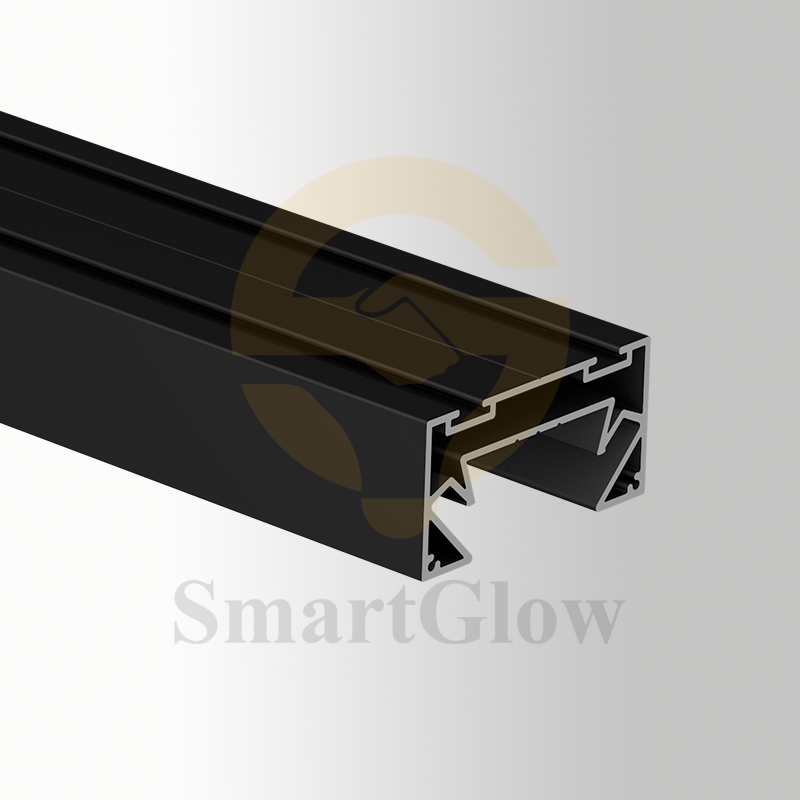

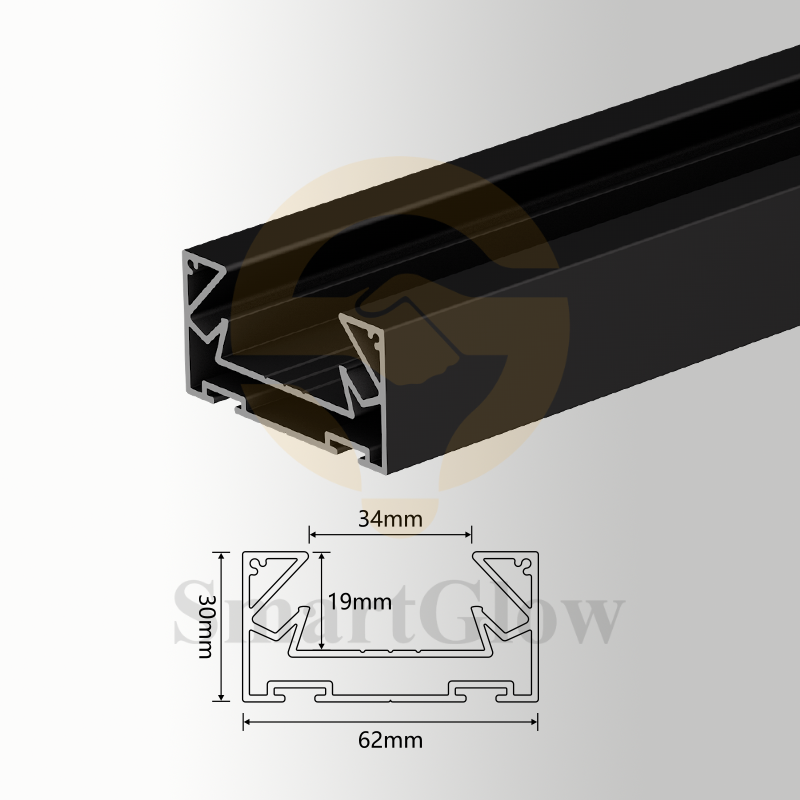

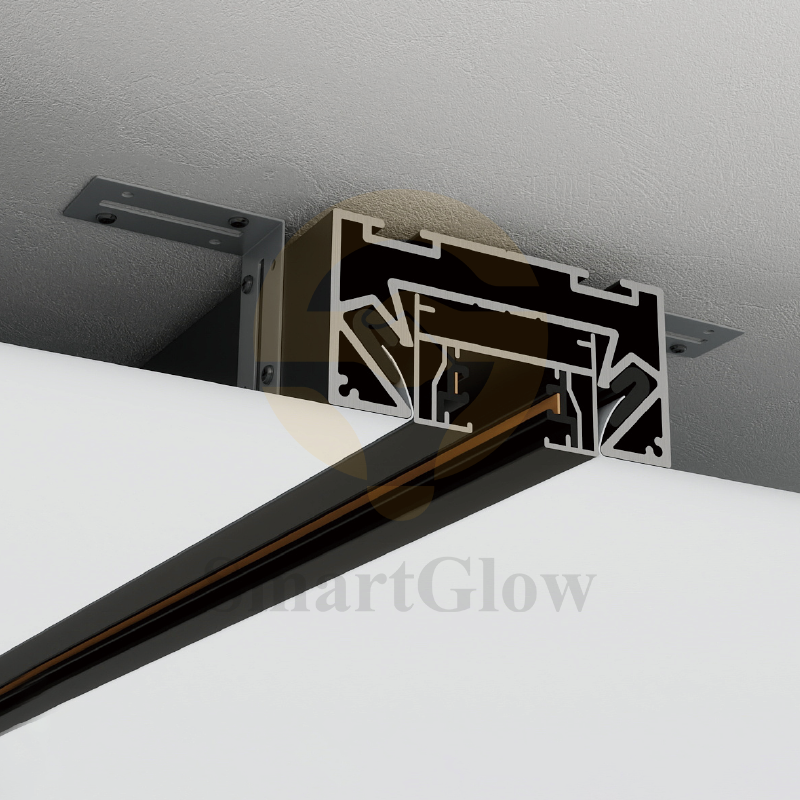

The aluminum LED profile SGT01 produced by Smart Glow is suitable for stretching ceilings SGT01 is a reinforced aluminum profile designed to create clean 34mm wide light in stretched ceiling systems. Compared to the SGT02 model, this version has thicker walls and two side mounting compartments. This allows for direct installation onto the foundation ceiling using standard screws without the need for additional brackets or metal straps.
The height of SGT01 is only 30 millimeters, which is very suitable for installations with limited ceiling height. Its rigid structure supports the tension of the two layers of film, ensuring the consistency of LED lighting along the entire line. It is compatible with 8-10mm LED light strips, providing the best brightness and heat dissipation effect - we recommend using LED light strips with a rated power of 14W/m.
Main characteristics of GAMMA 20F profile ✅ Compact silhouette height - only 30 millimeters, perfect for low ceiling installations ✅ Installation rooms on both sides - direct screw installation without brackets ✅ Compatible with 8-10mm LED strip - recommended 14W/m
Replace 20mm LED profiles ✅ SGT03- Higher height, suitable for ceiling structures with sufficient space ✅ SGT02- Same height, but narrower light (width of 33 millimeters)

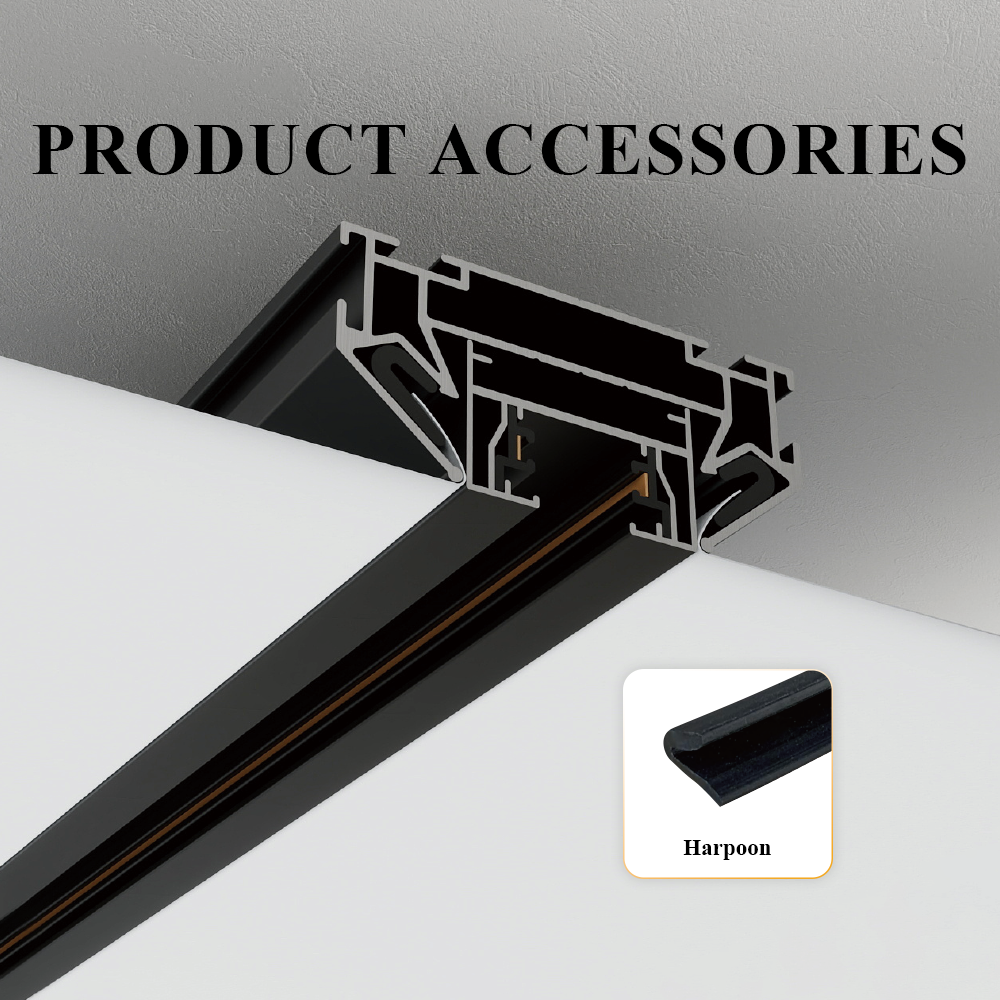

Harpoon
Color Temperature(CCT)
2700-6500K(Adjustable)
Lamp Body Material
Aluminum
Input Voltage(V)
DC 90-265V
Dimming
Tuya APP, Remote control, Panel switch
Installation
Surface/Recessed/Pendant/Stretch ceiling
Application
Home Office/Hotel/Residential/Apartment/Supermarket/Mall etc
